NetTRACK Barcode Touch Screen Control system for linear track

June 28, 2012

"Compatible with SVG Track 86/88 or DUNA 700 tracks."

This is a complete software and hardware upgrade package to convert linear SVG Track 86/88 series or DUNA 700 to new Touch Screen – Barcode – Recipe Management – Data & Alarm logging – Component Exercise controller system.

• NetTRACK Touch Screen Track control software
• Flow Recipe Management, Unlimited recipes with alpha numeric names
• Barcode system, Lot ID Management
• NetTRACK new CPU controller for track 86/88
• Data & Alarm logging capability
• Built-in system component exercise capability
• Light tower ready, bottle sensors, fluid low level sensors interlocks
• SECS/GEM Compliance

More

SVG Track 86/88 Recipe Management NetTRACK Software

June 24, 2012

"Software to manage Track 86/88 Recipes."

This is a software upgrade package for any Track 86/88 series using original SVG controller. Track hardware is not required to change. NetTRACK Recipe Management software allows users to entering recipe on PC, managing recipes and downloading recipes to track.

• NetTRACK Touch Screen Track control software
• Flow Recipe Management, Unlimited recipes with alpha numeric names
• Barcode system, Lot ID Management ready
• Data & Alarm logging capability

More

Track 86/88 SECS/GEM NetTRACK Server System Software

June 22, 2012

"Making Track system SECS/GEM Compliance."

This server system software is compatible with current SVG Track 86/88 Series or NetTRACK OEM DUNA 700.

• Integrated factory automation and SECS compliance
• Implementing SECS messages for Track systems
• Simple and minimal upgrade hardware. One PC serving multiple tracks
• Seamlessly exchanging SECS/HSMS messages with host server
• Compatible with SVG Track 86/88 controller or DUNA 700

More

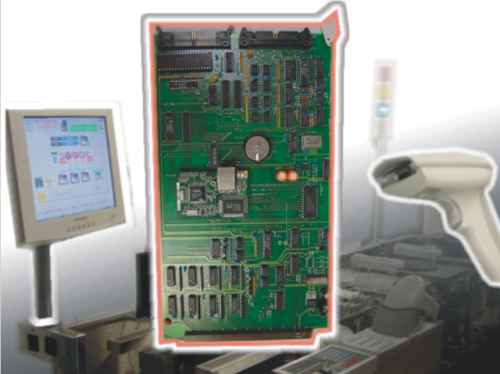

NetTRACK New Track CPU controller for Track 86/88 Or DUNA 700 Track

June 18, 2012

"Advanced PCB circuit and firmware design to replace SVG CPU controller directly while still interfacing seamlessly with SVG track I/O board."

NetTRACK new CPU controller is 100% backward compatible with SVG track controller. NetTRACK software team designs new firmware for this board. All functions of SVG processes are implemented and in addition, it also improves many functions. Any feature that is missing from SVG firmware is added and any SVG bug is corrected to make Track 86/88 system better and more reliable.

• Increasing 99 SPIN and 99 OVEN recipes
• Implementing many more advanced process options
• Built-in system track component exercise function
• Seamlessly exchanging with Track CPU, no change track I/O board
• SVG track process compatible
• Card cage plug and play, replace SVG CPU directly

More

Track Hot Plate Exhaust Cover

June 22, 2012

"Maintaining OVEN temperature inside and fume exhausted control."

This is a software/mechanical/hardware upgrade package for SVG Track 86/88 Series or DUNA 700 tracks Hot Plate Oven station. The cover will move up/down for wafer transferring. Normally it is in closed and down position to maintain the oven temperature inside. The cover traps all fume vapor generate during the oven process. At the result, to lower VOC level significantly.

• The package requires new NetTRACK CPU to have firmware that controls the cover

More

Brushless Controller and Motor for Track

June 22, 2012

"Interfacing to many commercial parts, Not required OEM parts."

Eliminating OEM parts dependency. OEM parts are expensive and required long lead time when order. NetTRACK can upgrade track SPIN module to work with widely available (COS) commercial off the shelf controllers. Track can be upgraded from DC motor to brushless motor at insignificant cost because new low cost controller available on the market.

• Seamlessly interface with Pacsci 450, 750 controllers
• New firmware to interface with Pacsci 950 controller
• New driver for Pacsci PC832 (very low cost controller)
• More available drivers for many lower cost controllers. Please email us.

All controllers are compatible same SVG or DUNA tracks: S21, S22G motors. Please email us your motor model and your controller requirements, we can make it working for you.

More

High performance temperature controllers for track

June 22, 2012

"Interfacing to many commercial parts, Not required OEM parts."

NetTRACK firmware can be adapted to interface with many high performance temperature controllers from several vendors via serial communication. The result will improve process reliability and performance. Please email us your requirement. We can add on the track firmware to match your requirement.

• Support many Watlow serial communication type controllers
• Modus driver is already developed and easily adapted to new controllers
• RS-232 interface for reliability (replacing analog interfacing)
• More available drivers for many lower cost controllers. Please email us.

More

Advanced Reliable Robotic ATS ARM PCB for Track 88

June 22, 2012

"Improved PCB ATS arm for track."

NetTRACK ATS Arm PCB is more reliable than original SVG ATS Arm board. We know the problem of SVG ATS arm board and decide to re-design and make new one.

More
